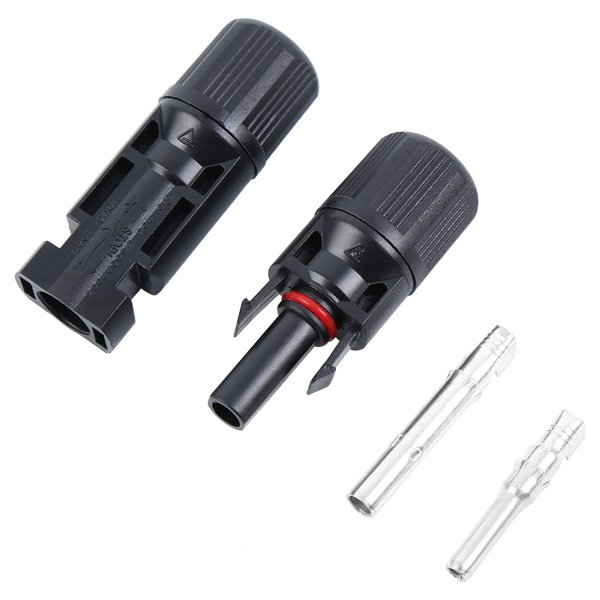

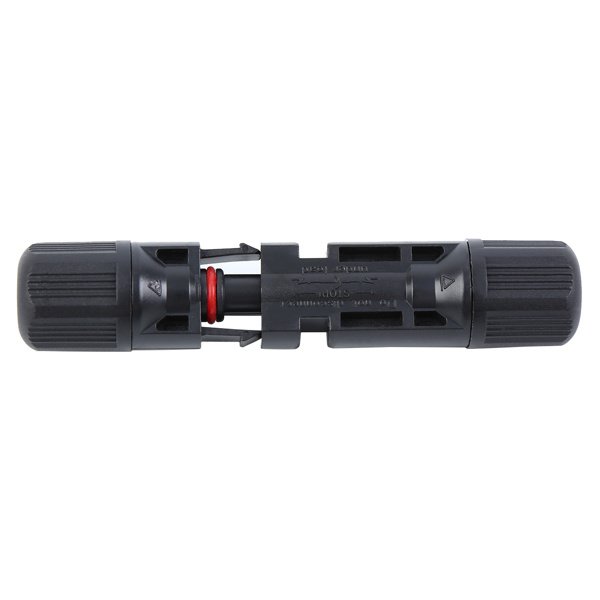

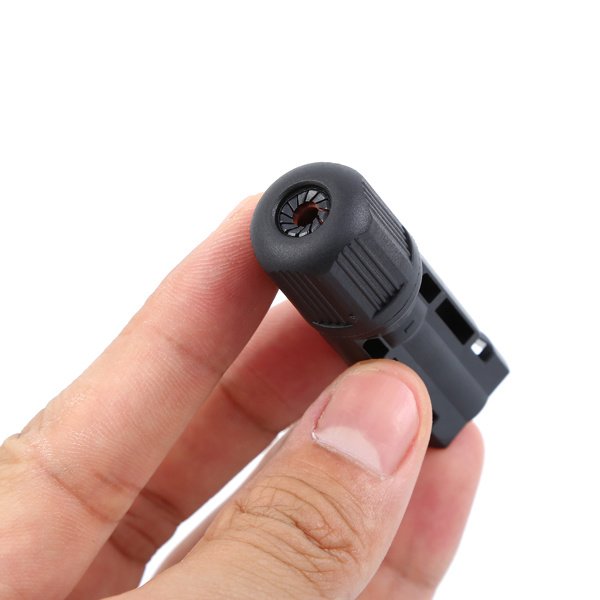

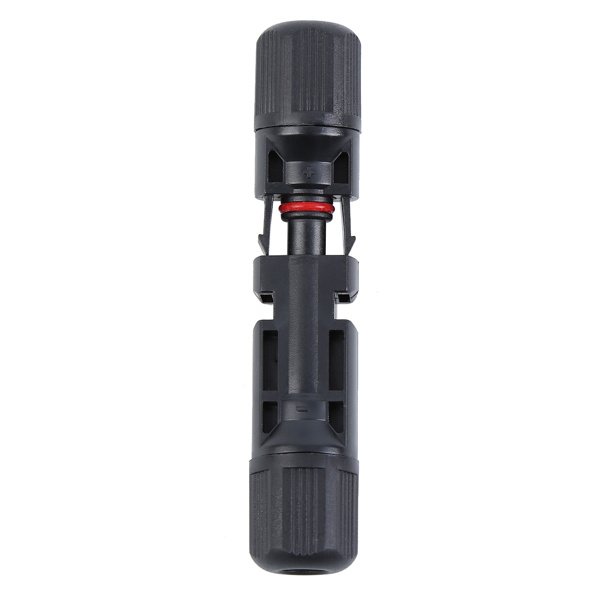

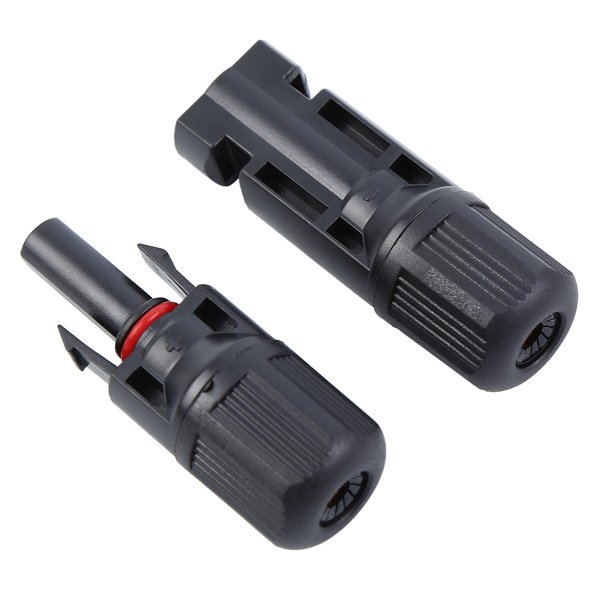

10 Pcs Male&Female Solar Panel Wire Cable Connector Set Connectors Waterproof
Details:
Features:

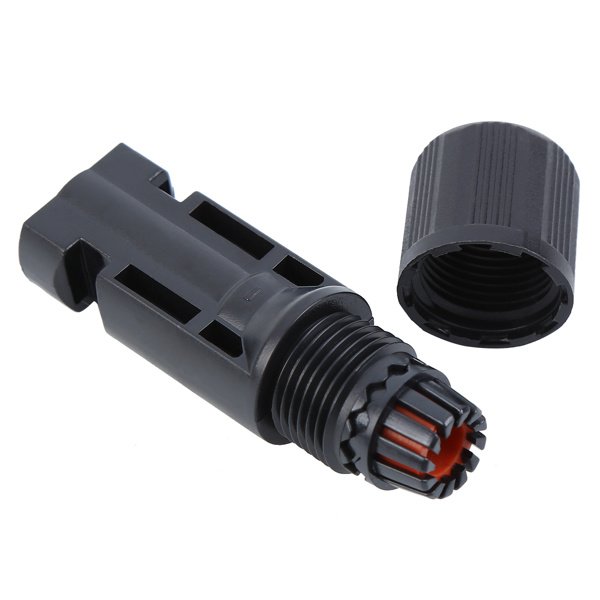

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.Double seal rings for better waterproof effect.Compatible with PV cables with different insulation diameters.Resistance of extra high & low temperature and fireproof.
Load capability with big current and high voltage.
Specification:

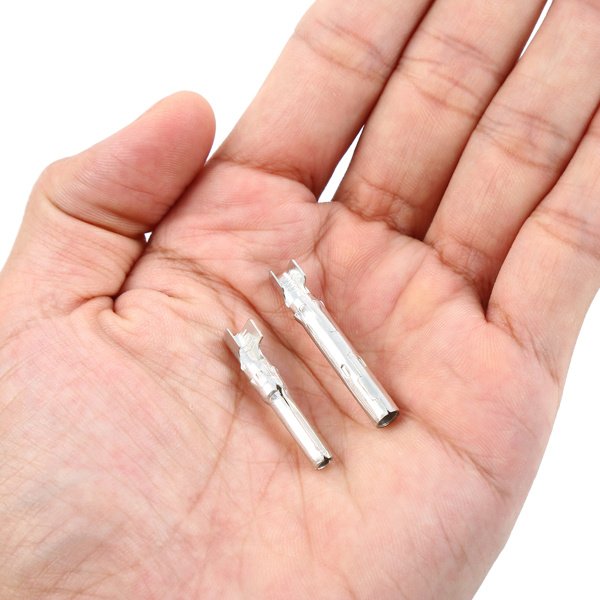

Shell material: PPO insulation materialCore material: copper tin platingWiring specifications: 2.5 / 4 / 6mm²Working voltage: ≤DC1000VTest voltage: DC6000VWorking current: ≤30ATemperature range: -40 ℃ ~ + 125 ℃Pollution degree: CAT III / 2Flame Class: UL94-VO or UL94-5VAPin dimension: 4.0 mm dia.Contact resistance: ≤0.2mmΩWaterproof degree: IP67Flame class: UL94-VOSafety Class: ⅡWithdrawal force: ≥50NInsertion force: ≤50NConnecting Method: crimping connection
Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)

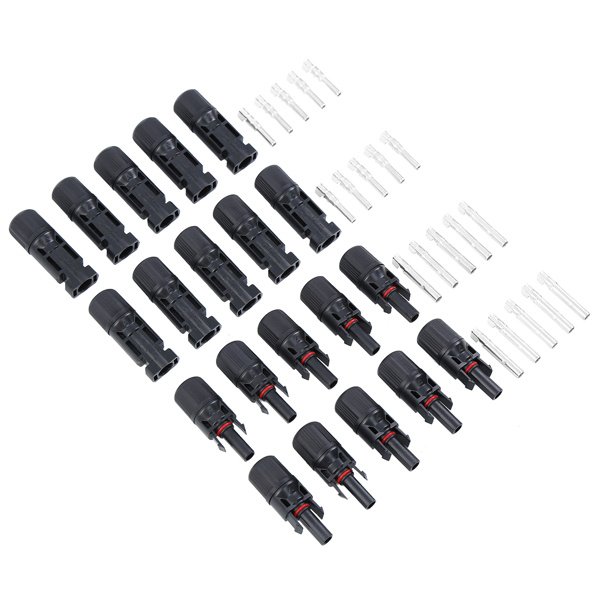

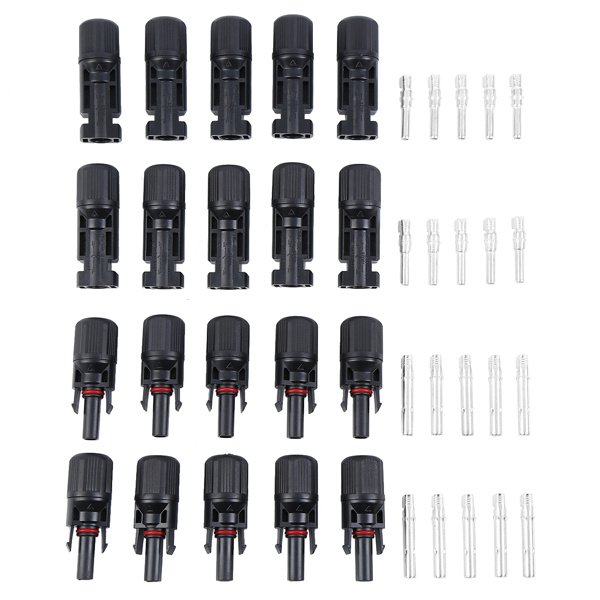

Package included:10 Male solar panel cable connector
10Female solar panel cable connector
We will send you quality what you choose, pls check the item option carefully before you purchase, thanks.
Features:
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.Double seal rings for better waterproof effect.Compatible with PV cables with different insulation diameters.Resistance of extra high & low temperature and fireproof.
Load capability with big current and high voltage.
Specification:
Shell material: PPO insulation materialCore material: copper tin platingWiring specifications: 2.5 / 4 / 6mm²Working voltage: ≤DC1000VTest voltage: DC6000VWorking current: ≤30ATemperature range: -40 ℃ ~ + 125 ℃Pollution degree: CAT III / 2Flame Class: UL94-VO or UL94-5VAPin dimension: 4.0 mm dia.Contact resistance: ≤0.2mmΩWaterproof degree: IP67Flame class: UL94-VOSafety Class: ⅡWithdrawal force: ≥50NInsertion force: ≤50NConnecting Method: crimping connection
Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)
Package included:10 Male solar panel cable connector
10Female solar panel cable connector
We will send you quality what you choose, pls check the item option carefully before you purchase, thanks.
